Mean Well LED driver series XLG-200-DA2

LED drivers in a metal housing (IP67) with 200W, a constant power, a Dali-2 interface and a low no-load power. These devices have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN550...

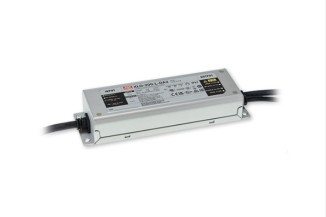

Mean Well LED driver series XLG-200-DA2

LED drivers in a metal housing (IP67) with 200W, a constant power, a Dali-2 interface and a low no-load power. These devices have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications, are dimmable and are protected against short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: XLG-200-L-DA2 and XLG-200-H-DA2.

  • single output
  • output: 200W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1800V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    XLG-200-L-DA2, Mean Well LED drivers, 200W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-200-DA2 series
    40,89 €
    242897 XLG-200-L-DA2 XLG-200-L-DA2
    40,89 €
    Quantity Unit price
    50 + 39,49 €

    More
    Stock: 31
  • Mean Well
    XLG-200-H-DA2, Mean Well LED drivers, 200W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-200-DA2 series
    40,89 €
    242896 XLG-200-H-DA2 XLG-200-H-DA2
    40,89 €
    Quantity Unit price
    50 + 39,49 €

    More
    Stock: 28
