Mean Well LED driver series XLG-150-DA2

LED drivers in a metal housing (IP67) with 150W, a DALI 2.0 interface, a low no-load power consumption and a constant power mode. These devices have a built-in active PFC function and are protected against o...

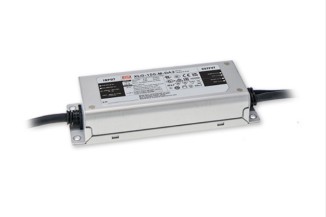

Mean Well LED driver series XLG-150-DA2

LED drivers in a metal housing (IP67) with 150W, a DALI 2.0 interface, a low no-load power consumption and a constant power mode. These devices have a built-in active PFC function and are protected against overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, are dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-150-L-DA2, XLG-150-M-DA2 and XLG-150-H-DA2.

  • single output
  • output: 150W
  • input voltage: 105 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 180x63x35,5mm
  • weight: 800g
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    XLG-150-L-DA2, Mean Well LED drivers, 150W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-150-DA2 series
    34,59 €
    242894 XLG-150-L-DA2 XLG-150-L-DA2
    34,59 €
    Quantity Unit price
    50 + 33,49 €
    Stock: 45
  • Mean Well
    XLG-150-M-DA2, Mean Well LED drivers, 150W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-150-DA2 series
    34,59 €
    242895 XLG-150-M-DA2 XLG-150-M-DA2
    34,59 €
    Quantity Unit price
    50 + 33,49 €
    Stock: 47
  • Mean Well
    XLG-150-H-DA2, Mean Well LED drivers, 150W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-150-DA2 series
    34,59 €
    242893 XLG-150-H-DA2 XLG-150-H-DA2
    34,59 €
    Quantity Unit price
    50 + 33,49 €
    Stock: 29
Showing 1 - 3 of 3 products
