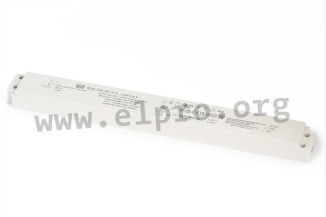

Mean Well LED driver series SLD-150

LED drivers in a plastic housing with 150W, a universal input, a constant voltage/current (SLD-150-12/24), a constant power (SLD-150-56) and protection class II. These devices have a built-in active PFC function and are protected against overload, short circuit, overtemperature as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13, EN62384, EN60335-1 as well as EN55015. We offer the following types of this Mean Well series: SLD-150-12, SLD-150-24 and SLD-150-56.

single output
output: 144 to 151,2W
input voltage: 120 to 305V AC (47 to 63Hz), 170 to 431V DC
maximal input inrush current: 65A
withstand voltage I/P-O/P: 3860V AC
operating temperature: -25 to +85°C
dimensions: 330x35x22mm
weight: 310g

> More

Data Sheet
