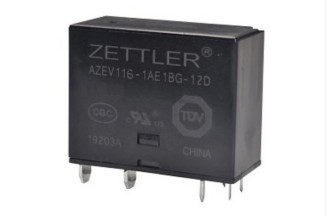

Zettler PCB relay series AZEV116

Relays in a 35x16x27,9mm housing made of PBT (UL94V-0) with 16A, a normally open load contact, a normally closed signal contact and a contact gap of at least 2,25m. These devices are suitable for e-mobility applica...

Zettler PCB relay series AZEV116

Relays in a 35x16x27,9mm housing made of PBT (UL94V-0) with 16A, a normally open load contact, a normally closed signal contact and a contact gap of at least 2,25m. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1020A. They are flux-tight (RTII), are suitable for PCB mounting and have a dielectric strength of 4000VRMS. We offer the following types of this Zettler series: AZEV116-1AE1BG-5D, AZEV116-1AE1BG-9D, AZEV116-1AE1BG-12D, AZEV116-1AE1BG-24D, and AZEV116-1AE1BG-48D.

  • load contact: SPST-NO
  • signal contact: SPST-NC
  • maximal switching current: 20A
  • maximal switching voltage: 400V AC
  • maximal switching power: 6400VA
> More
Data Sheet
