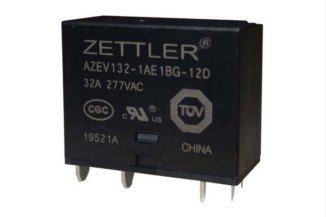

Zettler PCB relay series AZEV132

Relays in a 35x16x27,9mm housing with 32A, 1 normally open load contact, 1 normally closed signal contact and a contact gap of at least 2,25mm. These devices are suitable for e-mobility applications and can withsta...

Zettler PCB relay series AZEV132

Relays in a 35x16x27,9mm housing with 32A, 1 normally open load contact, 1 normally closed signal contact and a contact gap of at least 2,25mm. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1500A. They are flux-tight (RTII) and have a dielectric strength of 4000VRMS. We offer the following types of this Zetttler series: AZEV132-1AE1BG-5D, AZEV132-1AE1BG-9D, AZEV132-1AE1BG-12D, AZEV132-1AE1BG-24D, and AZEV132-1AE1BG-48D.

  • load contact: SPST-NO
  • signal contact: SPST-NC
  • maximal switching current: 40A
  • maximal switching voltage: 400V AC
  • maximal switching power: 12.800VA
> More
Data Sheet
