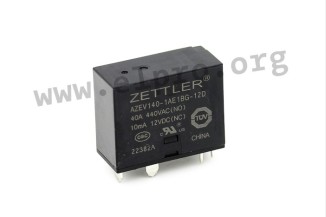

Zettler PCB relay series AZEV140

Relays in a 35x16x28mm housing with 40A, 1 normally open load contact (SPST-NO) and 1 changeover signal contact. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 185...

Zettler PCB relay series AZEV140

Relays in a 35x16x28mm housing with 40A, 1 normally open load contact (SPST-NO) and 1 changeover signal contact. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1850A. They are flux-tight (RTII) and have a dielectric strength of 4000VRMS. We offer the following types of this Zettler series: AZEV140-1AE1BG-5D, AZEV140-1AE1BG-9D, AZEV140-1AE1BG-12D, AZEV140-1AE1BG-24D, and AZEV140-1AE1BG-48D.

  • load contact: SPST-NO
  • signal contact: SPST-NC
  • maximal switching current: 50A
  • maximal switching voltage: 440V AC
  • maximal switching power: 22.000VA
> More
Data Sheet
