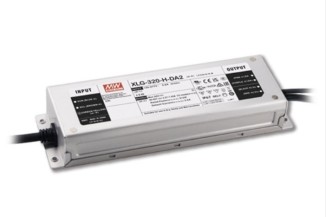

Mean Well LED driver series XLG-320-DA2

LED drivers in a metal housing (IP67) with 320W, a constant power and a low no-load power (<0,5W). These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overvoltage, short circuit as well as overtemperature. They have a DALI 2.0 interface, are dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-320-L-DA2, XLG-320-M-DA2 and XLG-320-H-DA2.

single output
output: 310,8 to 315W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 45A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1800V AC
operating temperature: -40 to +85°C
dimensions: 246x77x39,5mm
weight: 1450g
