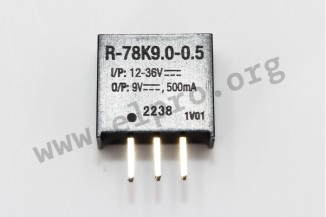

Recom DC/DC switching regulator series R-78K-0.5

DC/DC switching regulators in a SIL3 housing with 0,5A and an efficiency of up to 96%. These devices are suitable for PCB mounting and are protected against short circuit as well as undervoltage. Th...

Recom DC/DC switching regulator series R-78K-0.5

DC/DC switching regulators in a SIL3 housing with 0,5A and an efficiency of up to 96%. These devices are suitable for PCB mounting and are protected against short circuit as well as undervoltage. They do not require an additional heatsink and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.5-0.5, R-78K1.8-0.5, R-78K2.5-0.5, R-78K3.3-0.5, R-78K5.0-0.5, R-78K6.5-0.5, R-78K9.0-0.5, R-78K12-0.5 and R-78K15-0.5.

  • single output
  • output current: 500mA
  • maximal output voltage tolerance: ±2,7%
  • operating temperature: -40 to +90°C
  • dimensions: 11,5x7,55x10,2mm
  • weight: 1,7g
> More
Data Sheet
