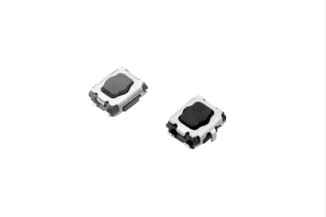

Panasonic SMD switch series EVPAA

Tactile switches with external dimensions of 3,5x2,9x1,7mm and an operating force of 1 to 7N. These devices are built as normally open contacts (1xNO) and have a service life of at least 100.000 actuation cycles. ...

Panasonic SMD switch series EVPAA

Tactile switches with external dimensions of 3,5x2,9x1,7mm and an operating force of 1 to 7N. These devices are built as normally open contacts (1xNO) and have a service life of at least 100.000 actuation cycles. They are suitable for direct PCB mounting (SMD) and ideal for applications that require a space-saving switch. We offer the following types of this Panasonic series: EVPAA002K, EVPAA202K, EVPAA402W, EVPAA602W, EVPAA802Q, EVPAAU02Q and EVPAA502W.

  • dimensions: 3,5x2,9x1,7mm
  • operating force: 1 to 7N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA
> More
Data Sheet
