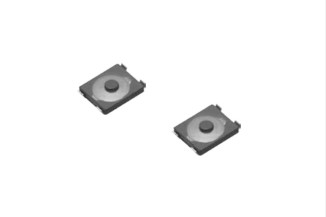

Panasonic SMD switch series EVPAFF

Tactile switches with external dimensions of 3x2,6mm and an operating force of 1,6N (EVPAFFB_), 2,4 (EVPAF7B_) or 3,4N (EVPAF5B_). These devices have a height of 0,65 resp. 0,7mm and are suitable for direct PCB m...

Panasonic SMD switch series EVPAFF

Tactile switches with external dimensions of 3x2,6mm and an operating force of 1,6N (EVPAFFB_), 2,4 (EVPAF7B_) or 3,4N (EVPAF5B_). These devices have a height of 0,65 resp. 0,7mm and are suitable for direct PCB mounting (SMD). They are built as normally open contacts (1xNO) and have a service life of at least 100.000 actuation cycles. We offer the following types of this Panasonic series: EVPAFFB65, EVPAF5B70, EVPAF7B70 and EVPAF7B65.

  • dimensions: 3x2,6mm
  • operating force: 1,6N / 2,4N / 3,4N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA
> More
Data Sheet
