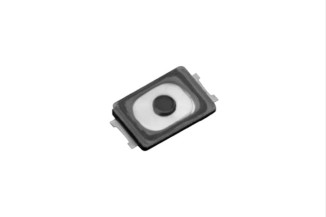

Panasonic SMD switch series EVPAW

Tactile switches with external dimensions of 3x2mm and an operating force of 1,6N (EVAPAWBD4A) resp. 2,4N (EVPAWCD4A) or 3,3N (EVPAWED4A). These switches are suitable for direct PCB mounting (SMD) and are built as...

Panasonic SMD switch series EVPAW

Tactile switches with external dimensions of 3x2mm and an operating force of 1,6N (EVAPAWBD4A) resp. 2,4N (EVPAWCD4A) or 3,3N (EVPAWED4A). These switches are suitable for direct PCB mounting (SMD) and are built as normally open contacts (1xNO). They have a height of 0,6mm and a service life of at least 300.000 (EVPAWB_/EVPAWC_) resp. 500.000 (EVPAWED4A) actuation cycles as well as an IP67 rating. We offer the following types of this Panasonic series: EVPAWBD4A, EVPAWCD4A and EVPAWED4A.

  • dimensions: 3x2mm
  • operating force: 1,6N / 2,4N / 3,3N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Panasonic
    EVPAWBD4A, Panasonic tactile switches, SMD, 3x2mm, 1,6N/2,4N/3,3N, IP67, EVPAW series
    0,313 €
    242529 EVPAWBD4A EVPAWBD4A
    0,313 €

    More
    Stock: 100
  • Panasonic
    EVPAWCD4A, Panasonic tactile switches, SMD, 3x2mm, 1,6N/2,4N/3,3N, IP67, EVPAW series
    0,313 €
    242530 EVPAWCD4A EVPAWCD4A
    0,313 €

    More
    Stock: 100
  • Panasonic
    EVPAWED4A, Panasonic tactile switches, SMD, 3x2mm, 1,6N/2,4N/3,3N, IP67, EVPAW series
    0,313 €
    242531 EVPAWED4A EVPAWED4A
    0,313 €

    More
    Stock: 100
Showing 1 - 3 of 3 products
