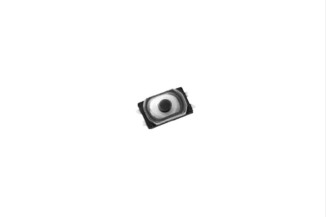

Panasonic SMD switch series EVPBB

Tactile switches with external dimensions of 2,6x1,6mm and a height of 0,5 resp. 0,55mm (EVPBB4_). These switches are suitable for direct PCB mounting (SMD) and have a operating force of 0,7N (EVPBB0_) resp. 1N (E...

Panasonic SMD switch series EVPBB

Tactile switches with external dimensions of 2,6x1,6mm and a height of 0,5 resp. 0,55mm (EVPBB4_). These switches are suitable for direct PCB mounting (SMD) and have a operating force of 0,7N (EVPBB0_) resp. 1N (EVPBB1_) or 2,4N (EVPBB4_). They are built as normally open contacts (1xNO) and have a service life of at least 200.000 (EVPBB0_) resp. 500.000 actuation cycles (EVPBB1_/EVPBB4_) as well as an IP67 rating. We offer the following types of this Panasonic series: EVPBB0AAB000, EVPBB1AAB000 and EVPBB4A9B000.

  • dimensions: 2,6x1,6mm
  • operating force: 0,7N / 1N / 2,4N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA
> More
Data Sheet
