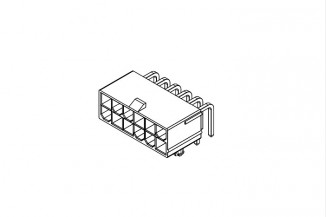

Molex socket housing series Mini Fit Jr. 5569

1- and 2-row male connector housings angled at 90° with a pitch of 4,2mm. These connectors allow wire-to-board configurations and are suitable for a PCB thickness of 1,78mm. They are made of polyamide ...

Molex socket housing series Mini Fit Jr. 5569

1- and 2-row male connector housings angled at 90° with a pitch of 4,2mm. These connectors allow wire-to-board configurations and are suitable for a PCB thickness of 1,78mm. They are made of polyamide nylon 6/6 and have a maximal durability of 30 mating cycles. We offer various 2 to 10 pole types of this Molex series.

  • pitch: 4,2mm
  • housing material: nylon 6/6
  • maximal rated current: 13A
  • maximal voltage: 600V
  • operating temperature: -40 bis +105°C
  • maximal soldering temperature: 240°C/5s
> More
Showing 1 - 14 of 14 products
