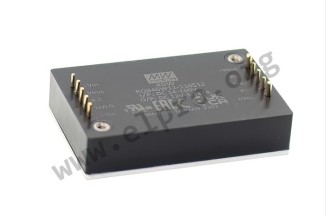

Mean Well DC/DC converter series RQB40W12

DC/DC converter modules in a Quarter Brick housing (2,28"x1,45"x0,5") with 40W, an input voltage ratio of 12:1 and a remote ON/OFF control. These devices do not require a minimum load, are suitable for PCB mounting and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a trimming output (±10%) and comply with EN55032 class A / class B as well as EN50155 (railway). We offer the following types of this Mean Well series: RQB40W12-110S05, RQB40W12-110S12, RQB40W12-110S24, RQB40W12-110S48 and RQB40W12-110S54.

single output
output: 40W
overload protection: 110 to 180%
withstand voltage: 3000V DC
operating temperature: -40 to +90°C
weight: 68g

> More

Data Sheet
