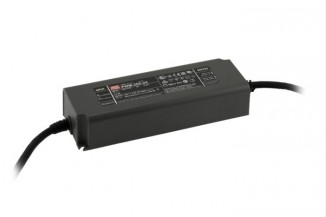

Mean Well LED driver series PWM-200 IoT

LED drivers in a plastic housing (IP67) with a constant PWM style output voltage, protection class II, 200W and a Casambi bluetooth interface. These devices comply with UL8750, EN61347-1, EN61347-2-13 as well as EN55015 and are suitable for LED lighting applications. They are protected against overload, overtemperature, short circuit as well as overvoltage and have a built-in active function. We offer the following types of this Mean Well series: PWM-200-12BLE, PWM-200-24BLE and PWM-200-48BLE.

single output
output: 180 to 200,2W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
input current: 1,1A
maximal input inrush current: 65A
leakage current: 0,75mA
connection type: stranded wire
cable length: 30cm
withstand voltage: 3750V AC
operating temperature: -20 to +85°C
dimensions: 195x68x39,5mm
weight: 1030g
