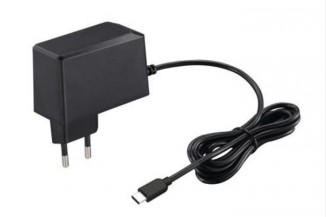

Yingjiao plug-in power supply series YS16V

Plug-in switching power supplies with 15 to 18W, a universal input, protection class II, a Europlug and energy efficiency Level VI. These devices are inexpensive and comply with EN55032 class B as well as EN62368-1. They have a very low leakage current (<0,25mA) as well as partly a USB C connector (YS16V_ USB-C) and are protected against short circuit, overvoltage as well as overload. We offer the following types of this Yingjiao series: YS16V+0503000 USB-C, YS16V-0503000, YS16V-1201500 and YS16V-2400750.

single output
output: 15 to 18W
input voltage: 90 to 264V AC (50 to 60Hz)
maximal input inrush current: 50A
input current: 0,4A
input plug: Euro
output plug YS16V_: 5,5x2,1mm coaxial connector
output plug YS16V_ USB-C: USB type C
operating temperature: -20 to +60°C
dimensions: 70x33x80mm
weight: 120g
