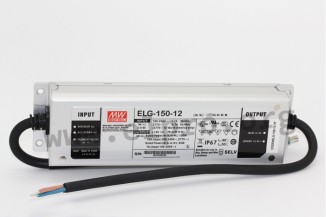

Mean Well LED driver series ELG-150

LED drivers in a metal housing (IP67) with a constant voltage/current, a protective earth conductor PE, 150W and a 6kV surge immunity level. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-150-12-3Y, ELG-150-24-3Y, ELG-150-36-3Y, ELG-150-42-3Y, ELG-150-48-3Y and ELG-150-54-3Y.

single output
output: 120 to 151,2W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 65A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 219x63x35,5mm
weight: 950g
