> Power supplies>Power supplies>Switching power supplies, enclosed>Mean Well switching power supplies, 15000W, parallel function, RST-15K series

Manufacturers

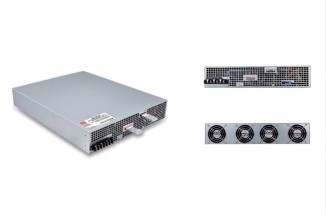

Mean Well power supply series RST-15K

Switching power supplies in an enclosed housing with 15.000W, a programmable output voltage, a 3-phase AC input, fans, a built-in remote ON/OFF control, screw terminals and an alarm signal. These devices have ...

Mean Well power supply series RST-15K

Switching power supplies in an enclosed housing with 15.000W, a programmable output voltage, a 3-phase AC input, fans, a built-in remote ON/OFF control, screw terminals and an alarm signal. These devices have a built-in active PFC function and are protected against overload, fan fail, overtemperature, short circuit as well as overvoltage. They are suitable for an active current sharing of up to 2 units (max. 30kW) and comply with EN62368-1, EN55032 class A/B as well as EN55011 class A/B. We offer the following types of this Mean Well series: RST-15K-115, RST-15K-230 and RST-15K-380.

  • single output
  • output: 14.904 to 15.030W
  • input voltage: 196 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 150A
  • leakage current: <3,5mA
  • overload protection: 100 to 105%
  • withstand voltage I/P-O/P: 4300V AC
  • withstand voltage I/P-FG: 2800V AC
  • withstand voltage O/P-FG: 2800V AC
  • operating temperature: -30 to +70°C
  • dimensions: 540x424x83,5mm
  • weight: 25kg
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    RST-15K-115, Mean Well switching power supplies, 15000W, parallel function, RST-15K series
    3.496,79 €
    242180 RST-15K-115 RST-15K-115
    3.496,79 €

    More
    Stock: 10
  • Mean Well
    RST-15K-230, Mean Well switching power supplies, 15000W, parallel function, RST-15K series
    3.496,79 €
    242181 RST-15K-230 RST-15K-230
    3.496,79 €

    More
    Stock: 9
  • Mean Well
    RST-15K-380, Mean Well switching power supplies, 15000W, parallel function, RST-15K series
    3.496,79 €
    242182 RST-15K-380 RST-15K-380
    3.496,79 €

    More
    Stock: 10
Showing 1 - 3 of 3 products
