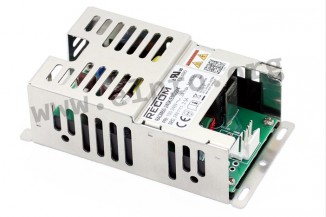

Recom AC/DC converter series RACM60-K/ENC/2x4

Switching power supplies in a compact 2"x4" metal housing with 60W, a built-in EMC filter and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protecte...

Recom AC/DC converter series RACM60-K/ENC/2x4

Switching power supplies in a compact 2"x4" metal housing with 60W, a built-in EMC filter and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 4000m and comply with EN60601-1-2 class B, EN55032 class B as well as EN61000-4-2. We offer the following types of this Recom series: RACM60-12SK/ENC/2X4 and RACM60-24SK/ENC/2X4.

  • single output
  • output: 60W
  • input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • no-load power: <0,1W
  • overload protection: 105 to 120%
  • withstand voltage I/P-O/P: 4800V AC
  • operating temperature: -40 to +85°C
  • dimensions: 118,3x62,7x38,7mm
  • weight: 167g
> More
Data Sheet
