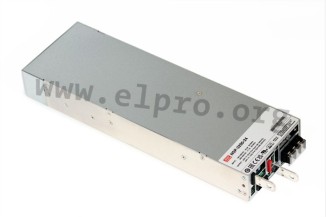

Mean Well power supply series NSP-3200

Switching power supplies in an enclosed housing with 3200W, a universal input, a remote ON/OFF control, an auxiliary power, a fan and a DC-OK signal. These devices have a built-in active PFC function and are ...

Mean Well power supply series NSP-3200

Switching power supplies in an enclosed housing with 3200W, a universal input, a remote ON/OFF control, an auxiliary power, a fan and a DC-OK signal. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a programmable output voltage and comply with EN55032 class B, EN55032 class A, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NSP-3200-24 and NSP-3200-48.

  • single output
  • output: 3192 to 3216W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 400V DC
  • maximal input inrush current: 55A
  • leakage current: <2mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 2240g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    NSP-3200-24, Mean Well switching power supplies, 3200W, NSP-3200 series
    470,29 €
    241565 NSP-3200-24 NSP-3200-24
    470,29 €

    More
    Stock: 84
  • Mean Well
    NSP-3200-48, Mean Well switching power supplies, 3200W, NSP-3200 series
    444,19 €
    241566 NSP-3200-48 NSP-3200-48
    444,19 €

    More
    Stock: 48
