Mean Well battery charger series NPB-1700

External battery chargers with 1700W, a built-in CAN bus interface, a remote ON/OFF control and a fan. These devices are suitable for Li-ion as well as lead-acid batteries and are protected against voltage...

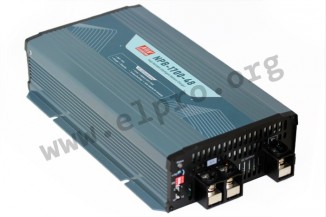

Mean Well battery charger series NPB-1700

External battery chargers with 1700W, a built-in CAN bus interface, a remote ON/OFF control and a fan. These devices are suitable for Li-ion as well as lead-acid batteries and are protected against voltage reversal, overvoltage, overtemperature as well as short circuit. They have a digitally (SBP-001) resp. a manually (DIL switch) adjustable charging curve (2/3 stage) and comply with EN62368-1 as well as EN60335-1/2-29. We offer the following types of this Mean Well series: NPB-1700-12, NPB-1700-24 and NPB-1700-48.

  • output: 1428 to 1680W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • AC current: 9,3A
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • storage temperature: -40 to +85°C
  • dimensions: 300x184x70mm
  • weight: 2960g
> More
Data Sheet
--
