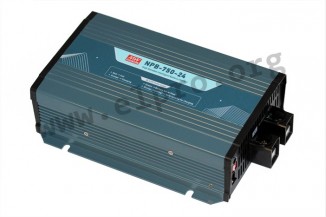

Mean Well battery charger series NPB-750

External battery chargers with 750W, a remote ON/OFF control, a built-in CANBus interface and a fan. These devices are suitable for Li-ion as well as lead-acid batteries and are protected against voltage reversal, overvoltage, overtemperature as well as short circuit. They have a digitally (SBP-001) resp. a manually adjustable charging curve (DIL switch) and comply with EN62368-1, EN60335-1/2-29, EN55032 class B, EN55014-1 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-750-12, NPB-750-24 and NPB-750-48.

output: 722,4 to 759,4W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
AC current: 4A
maximal input inrush current: 50A
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
storage temperature: -40 to +85°C
dimensions: 230x158x67mm
weight: 1840g
