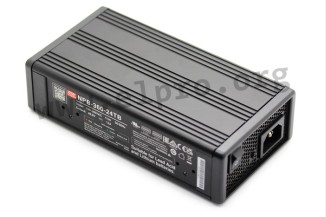

Mean Well battery charger series NPB-360

External battery chargers with 360W, a universal input and a DIL switch for selecting the charging stage (2/3). These devices have a built-in active PFC function, are suitable for Li-ion as well as lead-aci...

Mean Well battery charger series NPB-360

External battery chargers with 360W, a universal input and a DIL switch for selecting the charging stage (2/3). These devices have a built-in active PFC function, are suitable for Li-ion as well as lead-acid batteries and are protected against overvoltage, voltage reversal, short circuit as well as overtemperature. They have an adjustable charging voltage as well as current and comply with EN62368-1, EN60335-1/2-29, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-360-12TB, NPB-360-24TB and NPB-360-48TB with terminal blocks, NPB-360-12XLR, NPB-360-24XLR and NPB-360-48XLR with an XLR connector as well as NPB-360-12AD1, NPB-360-24AD1 and NPB-360-48AD1 with an Anderson connector.

  • output: 304 to 364,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • AC current: 2,2A
  • maximal input inrush current: 50A
  • operating temperature: -30 to +70°C
  • storage temperature: -40 to +85°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • dimensions: 180x96x49mm
  • weight: 1300g
> More
Data Sheet
