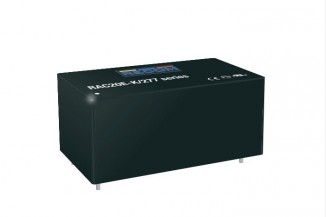

Recom AC/DC converter series RAC20E-K/277

AC/DC converters in an enclosed plastic housing with 20W, a universal input, protection class II and a low no-load power consumption (<200mW). They are suitable for PCB mounting and are protected agains...

Recom AC/DC converter series RAC20E-K/277

AC/DC converters in an enclosed plastic housing with 20W, a universal input, protection class II and a low no-load power consumption (<200mW). They are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN62368-1, IEC62368-1, UL62368-1, EN61204-3 as well as EN55032 class B. We offer the following types of this Mean Well series: RAC20E-05SK/277, RAC20E-12SK/277 and RAC20E-24SK/277.

  • single output
  • output: 20W
  • input voltage: 85 to 305V AC (47 to 63Hz)
  • input current: 0,3A
  • maximal input inrush current: 40A
  • leakage current: 0,25mA
  • no-load power: <0,2W
  • withstand voltage I/P-O/P: 4000V AC
  • connection type: THT
  • operating temperature: -40 to +90°C
  • dimensions: 52,5x27,6x23mm
  • weight: 60g
> More
Data Sheet
