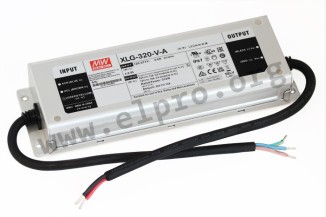

Mean Well LED driver series XLG-320

LED drivers in a metal housing (IP67) with a constant current / constant voltage, 315W and a dimming function. These devices are protected against overcurrent, overtemperature, short circuit as well as overvolta...

Mean Well LED driver series XLG-320

LED drivers in a metal housing (IP67) with a constant current / constant voltage, 315W and a dimming function. These devices are protected against overcurrent, overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: XLG-320-L-A, XLG-320-M-A, XLG-320-H-A and XLG-320-V-A.

  • single output
  • output: 310,8 to 315W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    XLG-320-L-A, Mean Well LED switching power supplies, 320W, IP67, CV and CC (mixed mode), constant power, dimmable, XLG-320 serie
    52,19 €
    241225 XLG-320-L-A XLG-320-L-A
    52,19 €
    Quantity Unit price
    50 + 50,49 €

    More
    Stock: 12
  • Mean Well
    XLG-320-M-A, Mean Well LED switching power supplies, 320W, IP67, CV and CC (mixed mode), constant power, dimmable, XLG-320 serie
    52,19 €
    241227 XLG-320-M-A XLG-320-M-A
    52,19 €
    Quantity Unit price
    50 + 50,49 €

    More
    Stock: 70
  • Mean Well
    XLG-320-H-A, Mean Well LED switching power supplies, 320W, IP67, CV and CC (mixed mode), constant power, dimmable, XLG-320 serie
    52,19 €
    241223 XLG-320-H-A XLG-320-H-A
    52,19 €
    Quantity Unit price
    50 + 50,49 €

    More
    Stock: 14
  • Mean Well
    XLG-320-V-A, Mean Well LED switching power supplies, 320W, IP67, CV and CC (mixed mode), constant power, dimmable, XLG-320 serie
    52,19 €
    241229 XLG-320-V-A XLG-320-V-A
    52,19 €
    Quantity Unit price
    50 + 50,49 €

    More
    Stock: 476
Showing 1 - 4 of 4 products
