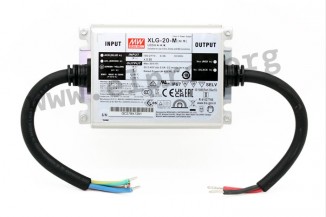

Mean Well LED driver series XLG-20

LED switching power supplies in a metal housing (IP67) with a constant current, 20W and a universal input. These devices are protected against overload (hiccup), overcurrent, short circuit, overtemperature as well as overvoltage and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 as well as EN61000-3-3 and have a built-in active PFC function. We offer the following types of this Mean Well series with a 3 in 1 dimming function (1 to 10V DC, 10V PWM signal, resistance): XLG-20-L-B, XLG-20-M-B and XLG-20-H-B as well as the non-dimmable power supplies XLG-20-L, XLG-20-M and XLG-20-H.

single output
output: 18,9 to 21W
input voltage: 90 to 305V AC (47 to 63Hz)
maximal input inrush current: 5A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +80°C
dimensions: 95x63x30mm
weight: 340g
