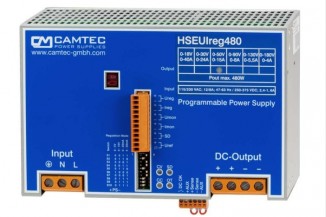

Camtec DIN rail power supply series HSEUiREG10001

Switching power supplies in a metal housing (IP20) with 1000W, a parallel function, a DC OK signal and protection class I. These devices have a programmable output voltage as well as output current...

Camtec DIN rail power supply series HSEUiREG10001

Switching power supplies in a metal housing (IP20) with 1000W, a parallel function, a DC OK signal and protection class I. These devices have a programmable output voltage as well as output current and are protected against overvoltage, overload, overtemperature as well as short circuit. They have a selectable input voltage, are suitable for DIN rail mounting and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HSEUIREG10001.018(R2), HSEUIREG10001.030(R2), HSEUIREG10001.050(R2), HSEUIREG10001.090(R2) and HSEUIREG10001.400(R2).

  • single output
  • output: 1008W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC
  • input current: 9,8A
  • maximal input inrush current: 13,8A
  • interfaces: 0 to 10V, 0 to 20mA, 4 to 20mA
  • output voltage tolerance: ±1,5%
  • connection types: screw terminal
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • dimensions: 200x156x115mm
  • weight: 3300g
