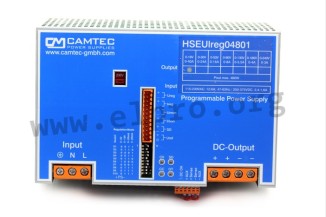

Camtec DIN rail power supply series HSEUiREG04801

Switching power supplies in a metal housing (IP20) with 480W, a remote ON/OFF control, a DC OK signal, protection class I and a remote sense function. These devices have a selectable input voltage,...

Camtec DIN rail power supply series HSEUiREG04801

Switching power supplies in a metal housing (IP20) with 480W, a remote ON/OFF control, a DC OK signal, protection class I and a remote sense function. These devices have a selectable input voltage, a programmable output voltage as well as a programmable output current and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for DIN rail mounting and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HSEUIREG04801.018(R2), HSEUIREG04801.030(R2), HSEUIREG04801.050(R2), HSEUIREG04801.130(R2) and HSEUIREG04801.240(R2).

  • single output
  • output: 480W
  • input voltage: 90 to 132V AC / 184 to 265V AC (47 to 63Hz), 250 to 375V DC
  • maximal input inrush current: 9,8A
  • output voltage tolerance: ±0,5%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • dimensions: 130x200x115mm
  • weight: 2900g
