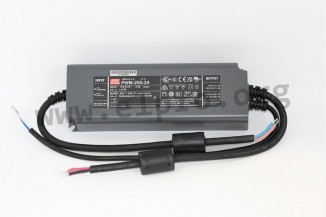

Mean Well LED driver series PWM-200

LED drivers in a plastic housing (IP67) with a PWM output voltage, 200W and protection class II. These devices are protected against overvoltage, short circuit, overtemperature as well as overload and comply with...

Mean Well LED driver series PWM-200

LED drivers in a plastic housing (IP67) with a PWM output voltage, 200W and protection class II. These devices are protected against overvoltage, short circuit, overtemperature as well as overload and comply with EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-200-12, PWM-200-24, PWM-200-36 and PWM-200-48.

  • single output
  • output: 180 to 200,1W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • input current: 1,1A
  • maximal input inrush current: 65A
  • leakage current: 0,75mA
  • no-load power: <0,5W
  • connection type: stranded wires
  • cable length: 30cm
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 195x68x39,5mm
  • weight: 1030g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    PWM-200-12, Mean Well LED drivers, 200W, IP67, PWM output voltage, PWM-200 series
    46,39 €
    237644 PWM-200-12 PWM-200-12
    46,39 €
    Quantity Unit price
    50 + 44,89 €

    More
    Stock: 43
  • Mean Well
    PWM-200-24, Mean Well LED drivers, 200W, IP67, PWM output voltage, PWM-200 series
    46,39 €
    237646 PWM-200-24 PWM-200-24
    46,39 €
    Quantity Unit price
    50 + 44,89 €

    More
    Stock: 0
  • Mean Well
    PWM-200-36, Mean Well LED drivers, 200W, IP67, PWM output voltage, PWM-200 series
    48,59 €
    237648 PWM-200-36 PWM-200-36
    48,59 €
    Quantity Unit price
    50 + 47,59 €

    More
    Stock: 17
  • Mean Well
    PWM-200-48, Mean Well LED drivers, 200W, IP67, PWM output voltage, PWM-200 series
    46,39 €
    237650 PWM-200-48 PWM-200-48
    46,39 €
    Quantity Unit price
    50 + 44,89 €

    More
    Stock: 1
Showing 1 - 4 of 4 products
