> Passive elements>Electroacoustics>Microphone capsules>diameter: 9.7mm, Elektret with FET

Manufacturers

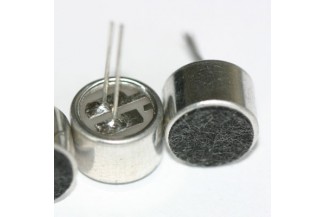

electret condenser microphones

* miniature version with built-in FET
* omnidirectional microphone
* for PCB assembly, pitch 2.5mm
* frequency range: 50...10000Hz
* sensitivity: 5.6mV/Pa/1kHz
* output impedance: 2kW
* signal/noise ratio: >34dB
* current c...

electret condenser microphones

* miniature version with built-in FET
* omnidirectional microphone
* for PCB assembly, pitch 2.5mm
* frequency range: 50...10000Hz
* sensitivity: 5.6mV/Pa/1kHz
* output impedance: 2kW
* signal/noise ratio: >34dB
* current consumption: <0.5mA
* blocking capacitor: 0.1...4.7µF
* permissible application temperature: 0...+40°C
* operating voltage Range, max.: 1.5...10V DC/0.5mA

> More
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • MIC 1
    0,99 €
    17655 MIC 1 MIC 1
    0,99 €

    More
    Stock: 2
Showing 1 - 1 of 1 product
