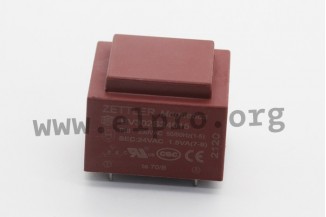

Zettler PCB transformers

Transformers with 1,5VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for an operating temperature of up to +70°...

Zettler PCB transformers

Transformers with 1,5VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06015, BV302S09015, BV302S12015, BV302S15015, BV302S18015 and BV302S24015.

  • core: EI 30
  • output: 1,5VA
  • input voltage: 230V (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm
