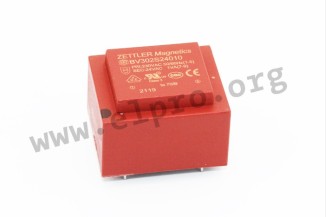

Zettler PCB transformers

Transformers with an EI30 core and 1VA. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting and are rated for and operating temperature of up to +7...

Zettler PCB transformers

Transformers with an EI30 core and 1VA. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting and are rated for and operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06010, BV302S09010, BV302S12010, BV302S15010, BV302S18010 and BV302S24010.

  • core: EI30
  • output: 1VA
  • input voltage: 230V (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm
> More
Data Sheet
Showing 1 - 6 of 6 products
