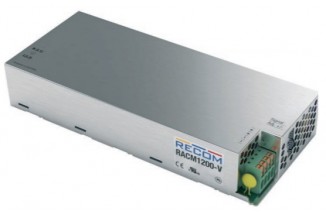

Recom AC/DC converter series RACM1200-V

AC/DC converters in a 9x3,8" housing with 1200W (peak power), a universal input, an adjustable output voltage, a PMBus interface (RACM1200-_/PMB) and a fanless design. These devices are suitable for medical ...

Recom AC/DC converter series RACM1200-V

AC/DC converters in a 9x3,8" housing with 1200W (peak power), a universal input, an adjustable output voltage, a PMBus interface (RACM1200-_/PMB) and a fanless design. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, short circuit as well as overvoltage. They have a remote function and comply with IEC62368-1, EN62368-1, UL62368-1, IEC60601-1, EN60601-1, IEC61558-1, EN61558-1, IEC60601-1-2, EN60601-1-2, EN55011 class B as well as EN55032 class B. We offer the following types of this Recom series: RACM1200-24SAV/ENC, RACM1200-24SAV/ENC/PMB, RACM1200-36SAV/ENC, RACM1200-48SAV/ENC and RACM1200-48SAV/ENC/PMB.

  • single output
  • output: 1200W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • input current: 14A
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +70°C
  • dimensions: 228x96,2x40mm
  • weight: 1000g
