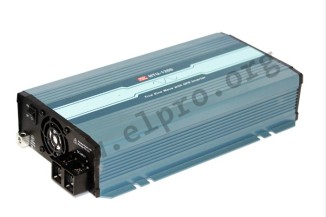

Mean Well DC/AC converter series NTU-1200

Inverters with 1200W, a pure sine wave output (THD<3%), a built-in UPS function, an automatic shutdown in case of a deeply discharged battery and a remote ON/OFF function. These devices have an adjustable output voltage and are protected against overvoltage, short circuit as well as overtemperature. They trigger an alarm in case of a low battery voltage and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-1200-212EU, NTU-1200-224EU and NTU-1200-248EU.

output: 1200W
selectable output voltage: 200/220/230/240V AC
output voltage frequency: ±3%
output frequency: 50/60Hz
output frequency tolerance: ±0,1%
curve shape: pure sine wave (THD<3%)
connection type: EU type F
operating temperature: -25 to +70°C
withstand voltage I/P-O/P: 3000V AC
withstand voltage O/P-FG: 1500V AC
dimensions: 333x184x70mm
weight: 3300g
