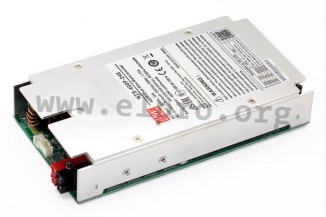

Mean Well DC/AC converter series NTS-400P

Inverters with 400W, a pure sine wave output (THD<3%), a remote ON/OFF control and a low battery voltage alarm function. These devices have an adjustable output voltage and comply with IEC62368-1 as well as EN55032 class A. They switch off automatically in case of a deeply discharged battery and are protected against overvoltage, short circuit as well as overtemperature. We offer the following types of this Mean Well series: NTS-400P-212, NTS-400P-224 and NTS-400P-248.

output: 400W
selectable output voltage: 200/220/230/240V AC
output voltage tolerance: ±3%
output frequency: 50/60Hz
output frequency tolerance: ±0,1%
curve shape: pure sine wave, THD<3%
connection type: plug-in connector
operating temperature: -20 to +70°C
withstand voltage I/P-O/P: 3000V AC
withstand voltage O/P-FG: 1500V AC
dimensions: 186x100,5x32mm
weight: 750g
