Recom DC/DC converter series RSE/Z

Regulated DC/DC converters in a SIL8 housing with 2W and an input voltage ratio of 4:1. These devices have a continuous short circuit protection, are suitable for direct PCB mounting as well as for ITE/industry a...

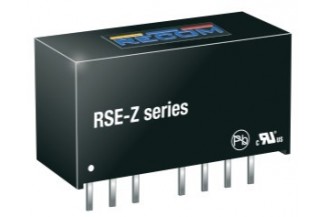

Recom DC/DC converter series RSE/Z

Regulated DC/DC converters in a SIL8 housing with 2W and an input voltage ratio of 4:1. These devices have a continuous short circuit protection, are suitable for direct PCB mounting as well as for ITE/industry applications and comply with UL60950-1, UL62368-1, IEC62368-1, EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Recom series: RSE-1205SZ/H2 and RSE-2405SZ/H2.

  • single output
  • output: 2W
  • output voltage tolerance: ±2%
  • operating temperature: -40 to +75°C
  • withstand voltage I/P-O/P: 2000V DC
  • connection type: THT
  • dimensions: 21,8x9,2x11,1mm
  • weight: 4,7g
> More
Data Sheet
