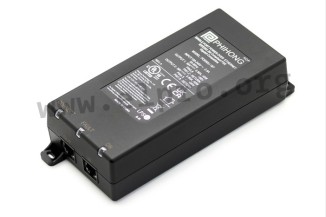

Phihong desktop power supply series POE90U

PoE injectors with 90W, a single port, protection class I and a universal input. These desktop switching power supplies are suitable for power supply through data lines and are protected against overload,...

Phihong desktop power supply series POE90U

PoE injectors with 90W, a single port, protection class I and a universal input. These desktop switching power supplies are suitable for power supply through data lines and are protected against overload, overvoltage as well as short circuit. They have an LED status display and comply with IEC60950-1, IEC62368-1, UL60950-1, UL62368-1, EN55032 class B as well as IEEE802.3bt (Hi-PoE). We offer the type POE90U-1BT6 of this Phihong series.

  • single output
  • output: 90W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 75A
  • input current: 1,2A
  • leakage current: 3,5mA
  • data rate: 1Gb
  • withstand voltage I/P-O/P: 4242V DC
  • withstand voltage I/P-FG: 2121V DC
  • input plug: C14
  • output plug: RJ45
  • dimensions: 178x80,5x43,6mm
  • weight: 500g
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Phihong
    POE90U-1BT6, Phihong PoE desktop switching power supplies, 90W, POE90U series
    68,99 €
    236113 POE90U-1BT6 POE90U-1BT6
    68,99 €

    More
    Stock: 9
Showing 1 - 1 of 1 product
