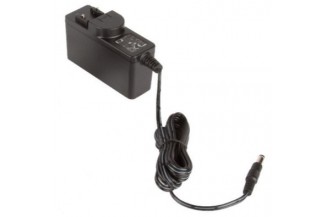

XP Power plug-in power supply series ACM24

Plug-in switching power supplies with 24W, a universal input, interchangeable AC plugs (must be ordered separately), protection class II and energy efficiency Level VI (EU 2019/1782). These devices are suitable for medical technology applications (2xMOPP) and are protected against short circuit, overvoltage as well as overload. They are made for indoor use and comply with UL60950-1, UL62368-1, EN60950-1, EN62368-1, IEC60950-1, IEC62368-1, ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1, EN55032 class B, IEC60601-1-2, EN61204-3 as well as EN60601-1-2. We offer the following types of this XP Power series: ACM24US12 and ACM24US24.

• single output
• output: 24W
• input voltage: 90 to 264V AC (47 to 63Hz)
• maximal input inrush current: 70A
• output voltage tolerance: 5%
• input current: 0,5A
• leakage current: 100µA
• operating temperature: 0 to +60°C
• withstand voltage: 4000V AC
• output plug: coaxial 2,5x5,5mm
• cable length: 180cm
• dimensions: 88x30x57mm
• weight: 160g

Matching input plugs
