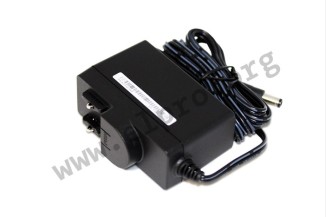

XP Power plug-in power supply series ACM12

Plug-in switching power supplies with 12W, energy efficiency Level VI (EU 2019/1782), protection class II and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against short circuit, overvoltage as well as overload. They have interchangeable AC plugs (must be ordered separately) and comply with UL60950-1, UL62368-1, EN60950-1, EN62368-1, IEC60950-1, IEC62368-1, ANSI/AAMI ES60601-1, EN55032 class B, IEC60601-1-2, EN61204-3 as well as EN60601-1-2. We offer the following types of this XP Power series: ACM12US12 and ACM12US24.

• single output
• output: 12W
• input voltage: 90 to 264V AC (47 to 63Hz)
• maximal input inrush current: 70A
• output voltage tolerance: 5%
• input current: 0,5A
• leakage current: 100µA
• operating temperature: 0 to +60°C
• withstand voltage: 4000V AC
• output plug: coaxial 2,5x5,5mm
• cable length: 150cm
• dimensions: 76x30,3x48,2mm
• weight: 120g

Matching input plugs
