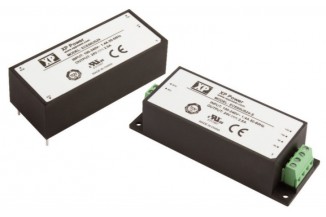

XP Power power supply series ECE60

Enclsoed type switching power supplies with 60W, a universal input, protection class II and a low no-load power consumption. These devices have both pins for PCB mounting (ECE60US_) as well as screw terminals (ECE60US_-S) for chassis mounting. They are protected against overvoltage, short circuit as well as overload and comply with UL62368-1, EN62368-1, IEC60950-1, IEC62368-1 as well as EN55032 class B. We offer the following types of this XP Power series: ECE60US12, ECE60US12-S, ECE60US24 and ECE60US24-S.

• single output
• output: 60W
• input voltage: 85 to 264V AC (47 to 63Hz)
• maximal input inrush current: 50A
• input current: 0,6A
• no-load power consumption: <0,3W
• operating temperature: -40 to +70°C
• withstand voltage I/P-O/P: 3000V AC
