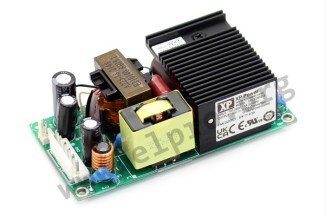

XP Power power supply series EPL225

Open frame (PCB) switching power supplies with protection class I, universal input and a low no-load power consumption. These devices have an output power of 225W with 10cfm forced air resp. 150W with free air convection and comply with IEC62368-1, EN62368-1, UL62368-1, EN55011 class A, EN55032 class A, IEC60601-1-2 as well as EN61204-3. They are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. We offer the following types of this XP Power series: EPL225PS12, EPL225PS18, EPL225PS24, EPL225PS28, EPL225PS36 and EPL225PS48.

• single output
• output: 225W (150W with free air convection)
• input voltage: 80 to 264V AC (47 to 63Hz)
• input current: 1,1A
• maximal input inrush current: 120A
• leakage current: 230µA
• maximal no-load power consumption: 0,5W
• withstand voltage I/P-O/P: 4000V AC
• withstand voltage I/P-FG: 1500V AC
• withstand voltage O/P-FG: 1500V AC
• operating temperature: -20 to +70°C
• weight: 195g
