Myrra PCB transformers

Transformers with an EI54 core and 16VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following type...

Myrra PCB transformers

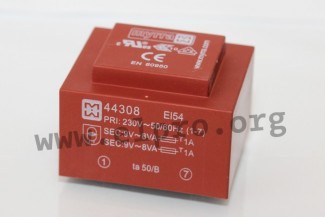

Transformers with an EI54 core and 16VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44301, 44302, 44303, 44304, 44305, 44306, 44308, 44309, 44310 and 44311.

  • core: EI 54
  • output: 16VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 50/B
  • test voltage: 4kV
  • recommended fuse: 80mA (external/time lag)
> More
