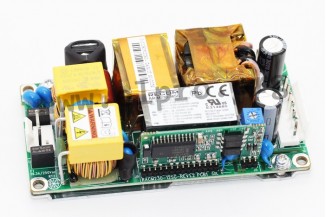

Recom power supply series RACM230-G

Open frame (PCB) switching power supplies in a compact case (4"x2") with 230W, a universal input and a pin strip connection for nylon-crimp terminals. These devices have a fanless design (160W baseplate-cooled),...

Recom power supply series RACM230-G

Open frame (PCB) switching power supplies in a compact case (4"x2") with 230W, a universal input and a pin strip connection for nylon-crimp terminals. These devices have a fanless design (160W baseplate-cooled), a low no-load power consumption (<0,5W) and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical applications (2xMOPP, 250V working voltage insulation) and comply with EN55032 class B as well as EN55035. We offer the following types of this Recom series: RACM230-12SG, RACM230-24SG, RACM230-36SG, RACM230-48SG and RACM230-54SG.

  • single output
  • output: 230W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±1%
  • maximal input inrush current: 60A
  • maximal leakage current: 0,3mA
  • overload protection: 105 to 200%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +80°C
  • dimensions: 101,6x50,8x32mm
  • weight: 220g
