Schurter fuse series MXT250

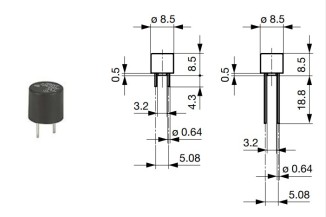

Miniature fuses in a round plastic housing (UL94V-0) with a diameter of Ø8,5mm and a breaking capacity of 100A. These fuse links have short terminals made of tin-plated copper (4,3mm/Ø0,64mm) and are suitable for PCB mo...

Schurter fuse series MXT250

Miniature fuses in a round plastic housing (UL94V-0) with a diameter of Ø8,5mm and a breaking capacity of 100A. These fuse links have short terminals made of tin-plated copper (4,3mm/Ø0,64mm) and are suitable for PCB mounting (soldering/plug-in). They have a time lag characteristic and comply with IEC60127-3/4 as well as IEC62368-1. We offer the following types of this Schurter series: 0034.6914, 0034.6915, 0034.6916, 0034.6917, 0034.6918, 0034.6919, 0034.6920, 0034.6921, 0034.6922, 0034.6923, 0034.6924 and 0034.6925.

  • rated voltage: 250V AC
  • rated current: 0,8 to 10A
  • breaking capacity: 100A
  • operating temperature: -40 to +85°C
  • bulk
> More
Data Sheet
