Mean Well DC/DC converter series RSD-500

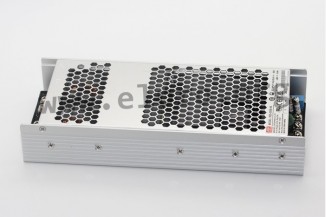

Converter modules in an enclosed case (1U/41mm) with 500W, screw terminals, a regulated output voltage and an LED display for power on. These devices have a fanless design (cooling by free air convection), an input voltage ratio of 2:1 and are protected against short circuit, overload, overvoltage as well as overtemperature. They are suitable for harsh and very dusty environments with high vibrations and extreme temperatures as well as for railway applications and comply with UL62368-1, EN55015, EN45545-2 as well as EN55032 class A and B. We offer the following types of this Mean Well series: RSD-500B-12, RSD-500B-24, RSD-500B-48, RSD-500C-12, RSD-500C-24, RSD-500C-48, RSD-500D-12, RSD-500D-24 and RSD-500D-48.

single output
output: 420 to 499,2W
overload protection: 105 to 135%
withstand voltage I/P-O/P: 4000V AC
withstand voltage I/P-FG: 2500V AC
withstand voltage O/P-FG: 2500V AC
operating temperature: -40 to +85°C
weight: 1450g

> More

Data Sheet
