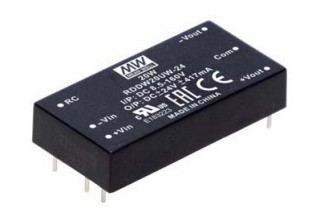

Mean Well DC/DC converter series RDDW20UW

Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 18:1. These devices are suitable for railway applications as well as for direct PCB mounting and are protected against sho...

Mean Well DC/DC converter series RDDW20UW

Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 18:1. These devices are suitable for railway applications as well as for direct PCB mounting and are protected against short circuit, overload as well as overvoltage. They require no minimum load, have a built-in remote ON/OFF control and comply with EN50121-3-2 class A, UL62368-1, EN50155 as well as IEC60751. We offer the following types of this Mean Well series: RDDW20UW-12, RDDW20UW-15 and RDDW20UW-24.

  • dual output
  • output: 20W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • dimensions: 50,8x25,4x10,2mm
  • weight: 28,5g
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    RDDW20UW-12, Mean Well DC/DC converters, 20W, EN 50155 railway certificate, 2"x1", RDDW20UW series
    50,29 €
    235289 RDDW20UW-12 RDDW20UW-12
    50,29 €
    Quantity Unit price
    50 + 48,59 €

    More
    Stock: 94
  • Mean Well
    RDDW20UW-15, Mean Well DC/DC converters, 20W, EN 50155 railway certificate, 2"x1", RDDW20UW series
    50,29 €
    235290 RDDW20UW-15 RDDW20UW-15
    50,29 €
    Quantity Unit price
    50 + 48,59 €

    More
    Stock: 5
  • Mean Well
    RDDW20UW-24, Mean Well DC/DC converters, 20W, EN 50155 railway certificate, 2"x1", RDDW20UW series
    50,29 €
    235291 RDDW20UW-24 RDDW20UW-24
    50,29 €
    Quantity Unit price
    50 + 48,59 €

    More
    Stock: 0
Showing 1 - 3 of 3 products
