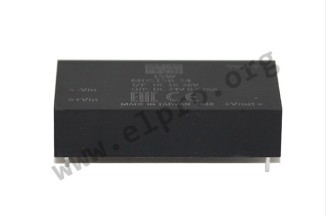

Mean Well DC/DC converter series MDS15

Converter modules in a 2x1 inch DIL housing with 15W and an input voltage ratio of 2:1. These devices have a low leakage current of less than 5µA, do not require a minimum load and are protected against overload (auto recovery) as well as short circuit (continuous). They are suitable for direct PCB mounting as well as for medical applications (2xMOPP) and comply with IEC60601-1 and EN55011 class A. We offer the following types of this Mean Well series: MDS15A-05, MDS15A-12, MDS15A-15, MDS15A-24, MDS15B-12, MDS15B-15, MDS15B-24, MDS15C-05, MDS15C-12, MDS15C-15 and MDS15C-24.

single output
output: 15W
output voltage tolerance: ±1%
maximal ripple and noise: 60mV_pp
withstand voltage: 4000V DC
operating temperature: -40 to +90°C
dimensions: 50,8x25,4x12mm
weight: 30g
