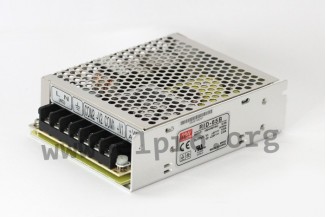

Mean Well power supply series RID-65

Switching power supplies in an enclosed housing with 65W, screw terminals, a universal input and 105°C long life caps. These devices have isolated outputs for CH1 + CH2 and are protected against short circuit, ...

Mean Well power supply series RID-65

Switching power supplies in an enclosed housing with 65W, screw terminals, a universal input and 105°C long life caps. These devices have isolated outputs for CH1 + CH2 and are protected against short circuit, overload (auto recovery) as well as overvoltage. They comply with EN62368-1, UL62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: RID-65A and RID-65B.

  • dual output
  • output: 66 to 68W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 440g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    RID-65A, Mean Well switching power supplies, 65W, dual output, RID-65 series
    21,59 €
    135746 RID-65A RID-65A
    21,59 €
    Quantity Unit price
    50 + 20,39 €

    More
    Stock: 12
  • Mean Well
    Meanwell RID-65 series
    20,59 €
    38290 RID-65B RID-65B
    20,59 €
    Quantity Unit price
    50 + 19,19 €

    More
    Stock: 37
Showing 1 - 2 of 2 products
