NF Forward PCB relays series S7

These one pole relays in a sealed plastic housing have a low profile (12,5mm, a voltage ressistance of up to 5kV between contact and inductor. They confirm relay safety class RTII and isolation class F. We offer var...

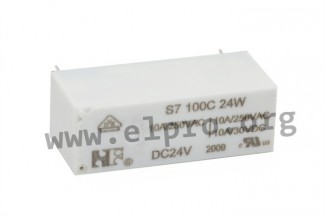

NF Forward PCB relays series S7

These one pole relays in a sealed plastic housing have a low profile (12,5mm, a voltage ressistance of up to 5kV between contact and inductor. They confirm relay safety class RTII and isolation class F. We offer various types of this NF series.

  • switching current: 10A
  • maximal switching voltage: 125V DC / 440V AC
  • contact type: 1x changeover contact (S7100_), 1x normally open contact (S7001_)
  • contact material: AgNi+Au (S7_C_), AgSnO (S7_E_)
  • contact ressistance: 100mOhm
  • minimal air-/creepage path: 8/8m
  • minimal attack-/drop-out time: 10/5ms
  • test voltage: 5000V (inductor/contact), 1000V (open contact)
  • lebensdauer: 105 cycles (electrical), 107 cycles (mechanical)
  • operating temperature: -40 to +85°C
  • weight: ±8g
