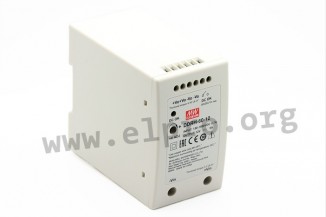

Mean Well DC/DC converter series DDRH-60

Converter modules in a DIN rail housing (TS-35/7,5 or 15) with 60W, an ultra wide input range, a built-in DC OK relay contact and an input voltage ratio of 10:1. These devices are designed fanless (cooling by free air convection), are suited for an operating altitude of up to 5000m and are protected against short circuit, overload, overvoltage, overtemperature as well as reverse polarity. They require no minimum load, have an adjustable output voltage (±20%) and comply with EN55032 class A. We offer the following types of this Mean Well series: DDRH-60-5, DDRH-60-12, DDRH-60-24 and DDRH-60-48.

single output
output: 50 to 60W
input voltage: 150 to 1500V DC
maximal input inrush current: 120A
overload protection: 105 to 135%
withstand voltage I/P-O/P: 4000V AC
withstand voltage O/P-DC OK: 500V AC
operating temperature: -30 to +80°C
dimensions: 57x93,5x105mm
weight: 800g
